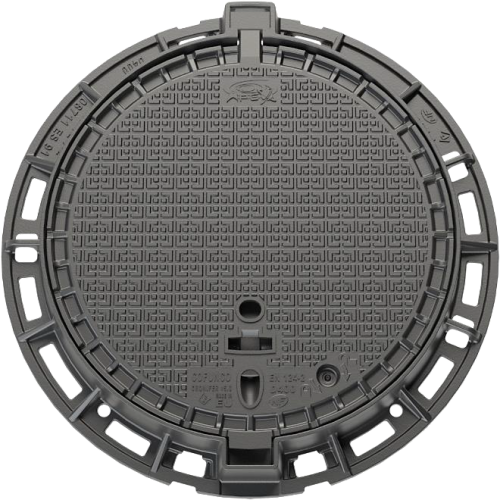

APEX D-400
Hinged manhole cover with elastomeric gasket anti noise. Heavy duty traffic
Material
Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.
Features
Acces hinged cover with round frame. Maximum opening range of 110º. Safety blocking at 90º angle and removable from the frame at 110º. Depth of insertion in the frame 75 mm. Lower structure of the cover is formed by 8 main ribs. Closing system with interlocking perimeter edge of 51,5 mm maximized by weight of the cover. Continuous gasket in the frame to avoid distorsion.Anti-slip surface and phonoabsorber. Opened by standard tools (crowbar, pick). Customization available.
Coating
Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.
| Model | Wymiary pokrywy (a) mm | Wymiary korpusu (b) mm | Wysokość korpusu (h) mm | Wolne otwarcie (o) mm | Certyfikaty | Informacje techniczne | |
|---|---|---|---|---|---|---|---|
| 1182 * | Ø 645 | Ø 850 | 100 | Ø 625 | AFNOR |
* Locking device
