ARCHILIFT D400
Hinged access cover with locking system and key
Material
Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.
Features

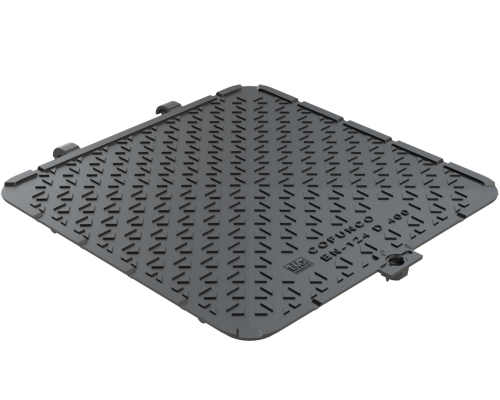

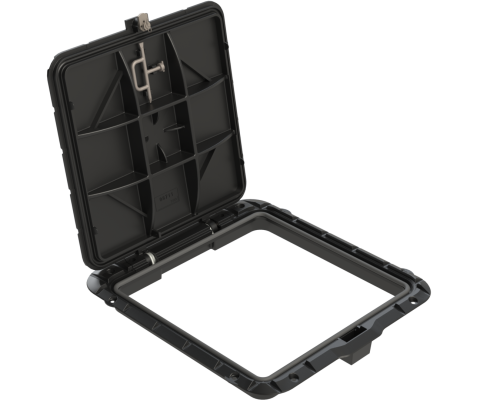

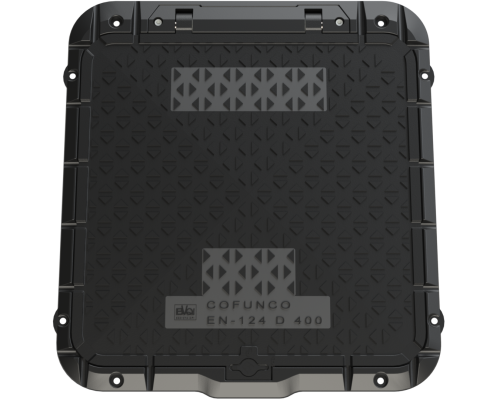

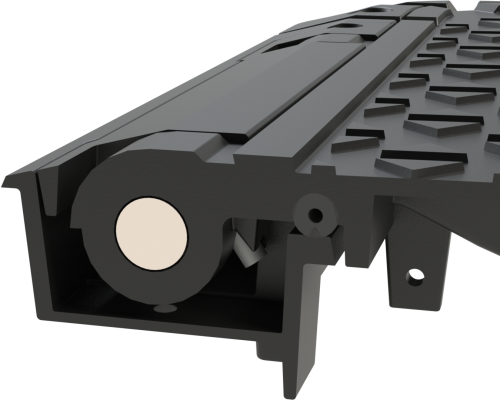

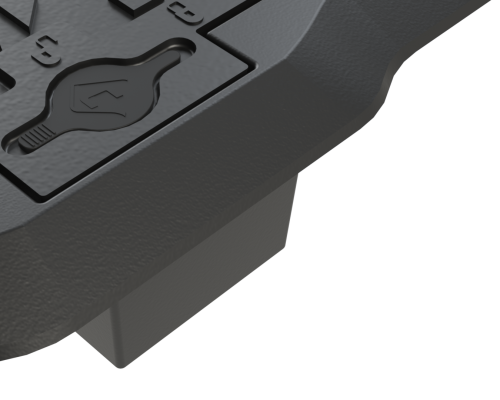

Access cover of 760x760mm clear opening. Hinged cover with maximum opening range of 110º. Hinge with spring system for easy handling. Cover includes a gasket and has an anti-slip surface especially designed with a slight slope so that water is eliminated quickly. Anti-theft closing system and lifting key included. The typical usage of this product is for accesses to the carburant deposits in petrol stations. Customization available.
Coating
Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.
| Model | Wymiary pokrywy (a) mm | Wymiary korpusu (b) mm | Wysokość korpusu (h) mm | Wolne otwarcie (o) mm | Certyfikaty | Informacje techniczne | |
|---|---|---|---|---|---|---|---|
| 3193 * | 840x840 | 1015x920 | 100 | 760x760 | BVC |
* ergonomic lifting key with long handle, customizable with an adapted head, usable as a grip for
opening and closing.
