Klasa F900E600 ClassD400 ClassC250 classB125 Class
D400 ClassMAREMAGNUM D400 - 1
Powrót do wyników

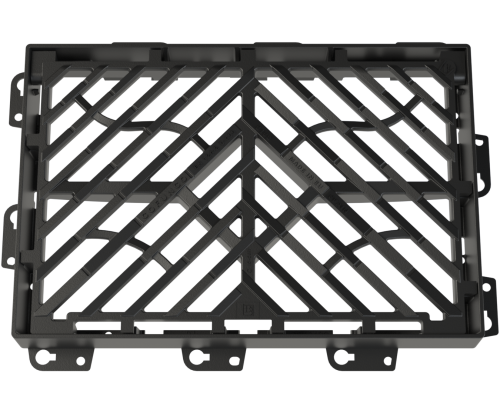

MAREMAGNUM D400

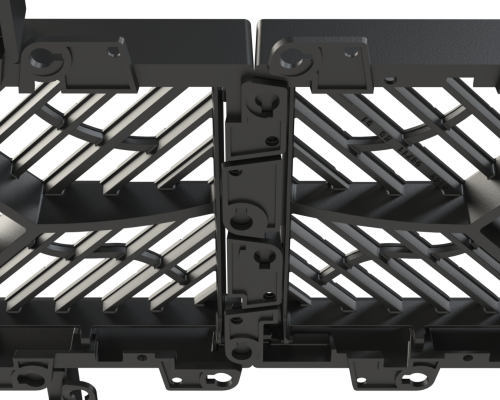

Hinged grating for modular/lineal formation

ArticulaciónBloqueo antiretorno

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

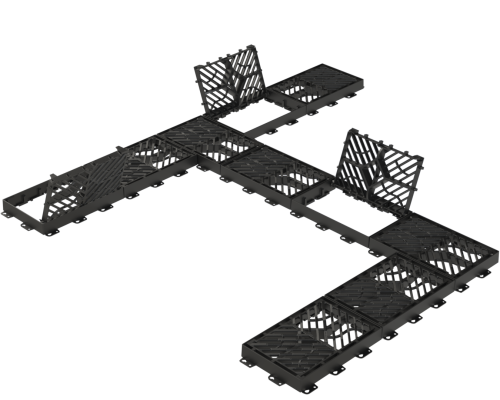

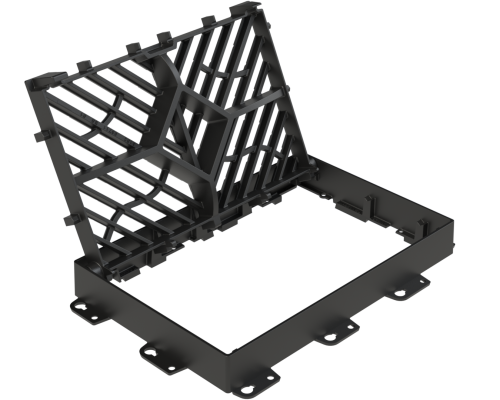

Set of frame and hinged grating with maximum opening range of 120º and anti-closing security block. Minimal gap that ensures perfect grate fitting in the frame. Appropriate for flooding roads. Great absorption capabilities (22,3 dm²). Modular grating available with perpendicular installation at the kerb or crossing of the intercepting road. Opening force below 22 daN.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelWymiary korpusu (b) mmWysokość korpusu (h) mmWolne otwarcie (o) mmWymiary wpustu (a) mmAbsorpcja powierzchniowa dm3CertyfikatyInformacje techniczne

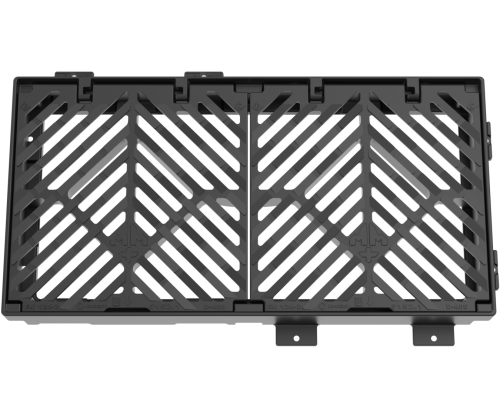

5152 *828x578100690x440754x50422,3IO-CERT
* To adjust the size to the width of the end of the road you can optionally add the 5153 module (dimensions 500mm wide and length 250mm). Class C-250. Non-jointed. Self-locking anchorage to better secure the product to pavement.
Poproś o konsultację. Nasz dział inżynieryjny przeanalizuje Twój projekt
zaproponować najlepsze rozwiązanie. Zadzwońpod numer +34 938 034 697
Dodaj do oferty
