Klasa F900E600 ClassD400 ClassC250 classB125 Class
D400 ClassVOLGA D400 - 1
Powrót do wyników

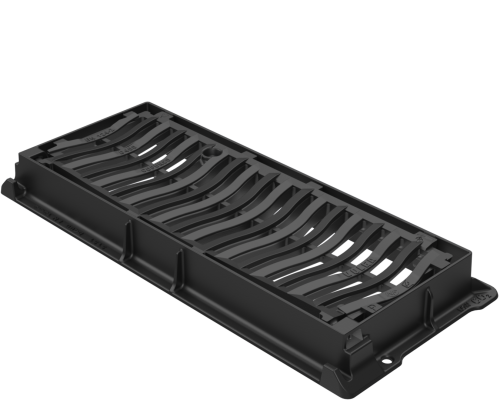

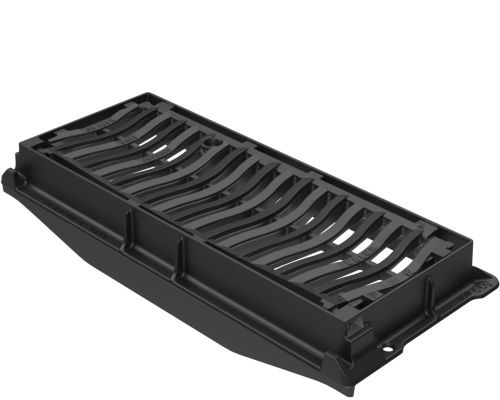

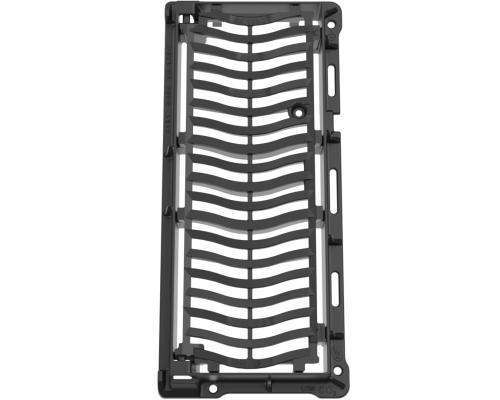

VOLGA D400

Roadway grating - PRM

ArticulaciónBloqueo antiretornoPMR

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

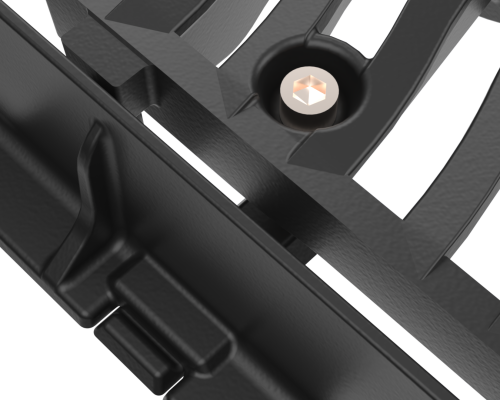

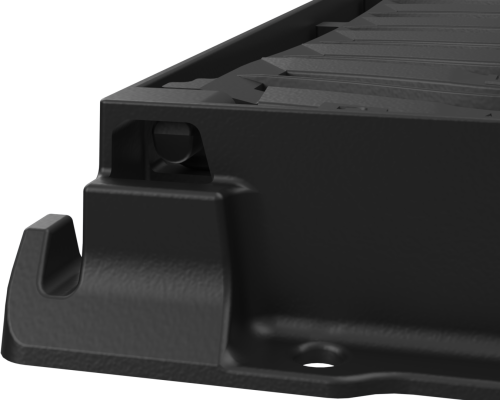

Grating and frame set. Articulation with anti-theft device once installed. Design of corrugated bars to obtain great absorption capacities and complying with the PRM standard (distance between bars <20 mm). Non-slip engraved surface.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelWymiary korpusu (b) mmWysokość korpusu (h) mmWolne otwarcie (o) mmWymiary wpustu (a) mmAbsorpcja powierzchniowa dm3CertyfikatyInformacje techniczne
5151 C/N 815x36580703x253730x28011,45AFNOR
5151 815x36580703x253730x28011,45
Poproś o konsultację. Nasz dział inżynieryjny przeanalizuje Twój projekt
zaproponować najlepsze rozwiązanie. Zadzwońpod numer +34 938 034 697
Dodaj do oferty
