Klasa F900E600 ClassD400 ClassC250 classB125 Class
D400 ClassVOYAGER D400 - 1
Powrót do wyników

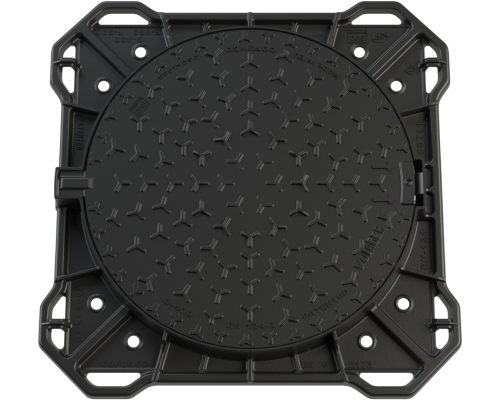

VOYAGER D400

Hinged access cover with elastomeric gasket in entire frame permiter and elastic closing system

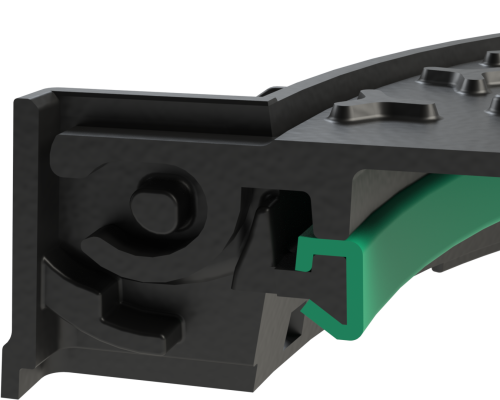

ArticulaciónBloqueo antiretornoCerraduraMarco redoncoSoporte elastico

Material

Casting manufactured in spheroidal-graphite cast iron (ductile cast iron) in accordance with the EN-1563 Standard.

Features

Set of 600mm clear opening and hinged cover with maximum opening range of 120º, safety blocking at 90º angle and removable from the frame at 90º. New patented elastic closing system. Continuous gasket to avoid distortion and partially serves as hermetic sealing. Customization available.

Coating

Epoxy-polyester with a thickness of 100 microns, free of solvents compliant with the standard 199/13/CEE, black RAL-9004.

ModelWymiary pokrywy (a) mmWymiary korpusu (b) mmWysokość korpusu (h) mmWolne otwarcie (o) mmCertyfikatyInformacje techniczne
1173 *Ø 635 Ø 785 100 Ø 600AFNOR
2173 Ø 635810x81075Ø 600BVC
1173 NF Ø 635Ø 850100Ø 600AFNOR
1173.55 Ø 585Ø 71875Ø 550AFNOR
* Locking system
Poproś o konsultację. Nasz dział inżynieryjny przeanalizuje Twój projekt
zaproponować najlepsze rozwiązanie. Zadzwońpod numer +34 938 034 697
Dodaj do oferty
